TREX® W/HORIZONS COMPONENTS

The Horizons Horizontal Frame Kits create a unique system that provides full privacy, high durability, and distinct style. Each component was designed to provide benefits in aesthetics and function. Combined, these components are easy to assemble and provide a stunning, low-maintenance horizontal fence that will last for years.

Horizons Horizontal Frame Kits are an exclusive patent-pending product of FDS Fence Distributors.

A. TREX FENCE POST

Trex Fencing Saddle Post
sadfsdf

LENGTH: 8′, 9′, 12′

post

A. Horizons Iron Fence Post

Horizons Steel Post With Cap
Horizons Steel fence post drawing

LENGTH: 9′

  • 5×5 Trex composite post is available in 8’, 9’ and 12’ lengths
  • Trex composite post won’t rot, crack, twist, and is resistant to insects
  • Trex composite post can sleeve over other posts (such as 4×4 wood deck privacy railing posts or heavy gauge round pipe); use Trex post as a sleeve when metal posts are mounted in concrete, and to construct fence heights up to 12’ tall
  • Alternative steel post is galvanized and powder-coated black

B. HORIZONS TOP & BOTTOM RAIL

Horizons Top Rail
Horizons Top Rail
horizons top rail drawing
Horizons Components 2
Horizons Components 3
  • Unique design with ribs creates strength
  • Supports the interlocking Trex pickets
  • Galvanized, black textured powder coated finish
  • Top rail sits on the bracket

C. HORIZONS VERTICAL BACK RAIL

Horizons Vertical Back Rail
horizons back rail drawing

(14 GA)

Horizons Components 4
  • Attaches to the Trex Post and the horizontal top and bottom rail
  • Attaches to the back of the fence
  • Notched to fit around the top bracket
  • Galvanized, black textured powder coated finish

D. HORIZONS VERTICAL FRONT RAIL

Horizons Vertical Front Rail
horizons front rail drawing

(14 GA)

Horizons Components 5
  • Attaches to the Trex Post and the horizontal top and bottom rail
  • Attaches to the front of the fence
  • Galvanized, black textured powder coated finish

E. TREX PICKETS

Saddle Picket
picketbottom
Horizons Components 6
  • Trex Pickets for the Horizons Fence system are 91” in length
  • Pickets hang from the Horizontal Top Rail
  • Interlocking pickets prevent warping, bowing and increase strength
  • Pickets create a board-on-board design and a fence with the same look on both sides

F. HORIZONS TOP RAIL BRACKET

Horizons Bracket
horizons bracket drawing

(16 GA)

Horizons Components 7
  • U-shaped design
  • Attaches to the Trex Post
  • Top rail slides over the bracket

G. TREX POST CAPS

Trex_Post_Cap-Crown-Saddle
Trex_Post_Cap-Flat-Brown
Trex_Post_Cap-Pyramid-Grey
Crown Cap

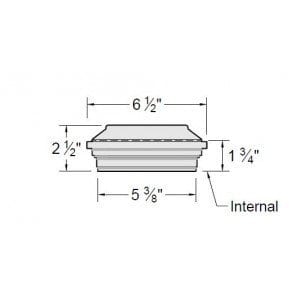

flat cap
post cap
Horizons Components 8

G. HORIZONS STEEL POST CAP

black_cap
Steel post cap
  • Three different Trex Caps available for Trex composite post
  • Two decorative  Trex caps – Pyramid Cap, Flat Cap
  • Subtle and sleek look Crown Cap alternative (FDS-exclusive)
  • Horizons Steel Post Cap is used steel post only

H. TREX GATE POST STIFFENERS

Heavy Duty Post Stiffener

Heavy Post Stiffener

C-Channel

A C-channel steel post stiffener
Horizons Components 9
Horizons Components 10
  • Two different weight and styles available
  • Most common C-channel stiffener is used for most hinge posts
  • Heavy Duty used for standalone hinge posts and for large gates
  • Heavy Duty also used as an insert for fence heights over 8’ tall

I. CONCRETE POST MOUNT

Concrete Post Mount
Horizons Components 11
Horizons Components 12
  • Use to mount Trex Fencing on a concrete wall (low wind areas)
  • Z-shape allows for brackets to be screwed on without hitting the mount
  • Matching pre-built gates are available. Gates are built with a welded internal galvanized steel frame. For more information, visit our Gates page.
  • Fasteners provided are zinc-coated steel. Replace with stainless steel in high humidity or salt water environments.
  • For product warranties, visit our Warranty page.
